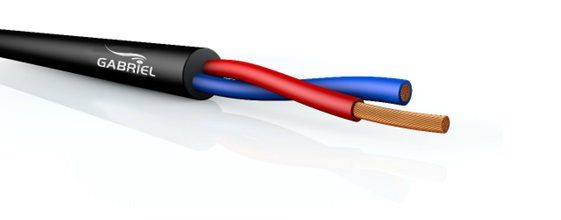

GAT 240 / GAT 440 / GAT 840
- ANALOG
- HIGHFLEX
APPLICATION
Proflex range of two core speaker cables suitable for high-end hi-fi equipment, rehearsal space, recording studio and live arena applications.
Stranded Pure Copper (OFC) Conductors, PVC Insulation, Matt Black PVC Sheath
| CONSTRUCTION DATA | ||||||
| Core Section | 4 mm² | |||||
| Stranded Copper Conductor | 127 x 0,20 mm ø Stranded copper (12 AWG) | |||||
| Conductor Insulation | 4,1 ± 0,05 mm ø PVC | |||||
| Conductor Color Code | Blue / Red / Yellow / Green / Black / Pink / Orange / White | |||||
| GAT 240 | ||||||
| Core Numbers x Section: | 2 x 4,0 mm² | |||||
| Outer Sheath | s-PVC Matt Black | |||||
| Outer Diameter | 10,20 ± 0,10 mm ø | |||||
| Weight | 16,7 kg/100m | |||||
| GAT 440 | ||||||
| Core Numbers x Section: | 4 x 4,0 mm² | |||||
| Outer Sheath | s-PVC Matt Black | |||||
| Outer Diameter | 12,6 ± 0,10 mm ø | |||||
| Weight | 27,1 kg/100m | |||||
| GAT 640 | ||||||
| Core Numbers x Section: | 6 x 4,0 mm² | |||||
| Outer Sheath | s-PVC Matt Black | |||||
| Outer Diameter | 15,8 ± 0,10 mm ø | |||||
| Weight | 43,2 kg/100m | |||||
| GAT 840 | ||||||
| Core Numbers x Section: | 8 x 4,0 mm² | |||||
| Outer Sheath | s-PVC Matt Black | |||||
| Outer Diameter | 17,7 ± 0,10 mm ø | |||||
| Weight | 63 kg/100m | |||||
| ELECTRICAL DATA | ||||||
| Conductor Resistance | < 4,5 Ω / km | |||||
| Insulation Resistance | > 2000 MΩ x km | |||||
| Capacitance | 180 pF / m (core/core) | |||||
| Inductance | 0.5 µH / m | |||||
| Test voltage | 2 kV | |||||
| Max. Operating Voltage | 300 V | |||||
| MECHANICAL DATA | ||||||
| Minimum Bending Radius | 8 x D ( D= outer diameter ) | |||||
| Temperatura Range | Mobile installation Fixed installation |
– 5° C to + 70° C | ||||
| -25° C to +70° C | ||||||
